Log View
Previous  Next


The Log View displays the USB transactions captured by USBTrace for the selected device(s) or driver(s).

graphic

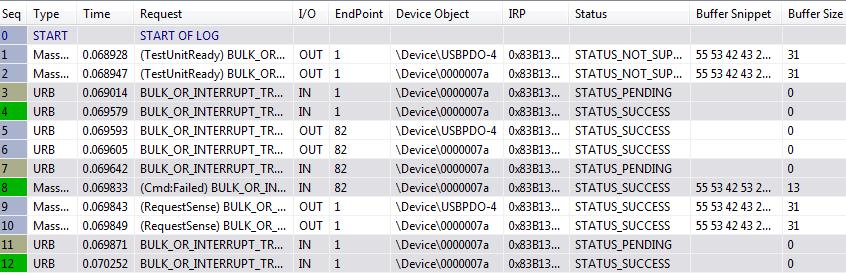

The Log View displays the following information for each captured transaction.

Seq - Sequence number of the transaction

Type - Type of the transaction

Time - Timestamp associated with the transaction

Request - Type of request.

I/O - Transaction direction (IN or OUT)

Endpoint - Endpoint address of the request

Device Object - Target device object

IRP - IRP address

Status - IRP Status

Buffer Snippet - Shows the first few bytes of the transfer data buffer

Buffer Size - Size of the transfer data buffer

The color in the Seq column can be decoded as follows:

graphic     Outgoing : From host to device.

graphic     Incoming (Success) : From device to host.

graphic     Incoming (Failed) : From device to host.

graphic     Outgoing request returned with status Pending from the device.

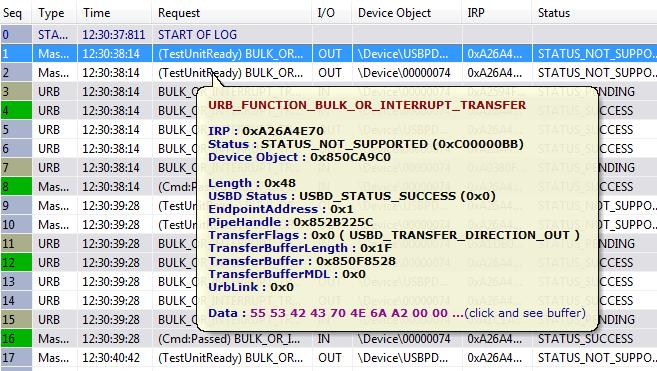

To know more information about a transaction, click on it. The detailed decoded information will be then displayed in the Info View. If ToolTips are enabled, just hover the mouse over a transaction and a tooltip displaying the detailed decoded information will be displayed.

graphic

You can right click on the log view to bring up the following context menu.

graphic


Resize columns to fit - Set the size (width) of columns so that all columns are visible

Set as 'time 0' request - Set the time stamp  of the selected request as zero. Time stamp of other requests are adjusted relative to this request.

Show/Hide tooltips - Enable or disable showing tooltip info for captured requests

Clear Log - Remove all captured requests from the log view

Search - Search captured requests

Filter - Configure filters to remove unwanted request types

Export - Export captured data as an HTML, text or XML report

View perf stats - View performance statistics of the current capture session
